    Extruder Machine SME Screw Element And Barrel Twin Screw Extruder Parts 350mm Mixing Zone

    Ask Lasest Price
    Brand Name : Nanxiang
    Model Number : Customizable
    Certification : ISO9001 2015
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 600 pieces/month
    Delivery Time : 30~60 days
    • Product Details
    • Company Profile

    Extruder Machine SME Screw Element And Barrel Twin Screw Extruder Parts 350mm Mixing Zone

    Extruder Machine SME Screw Element And Barrel Double Screw Extruder Parts Mixing Zone

    Product Description

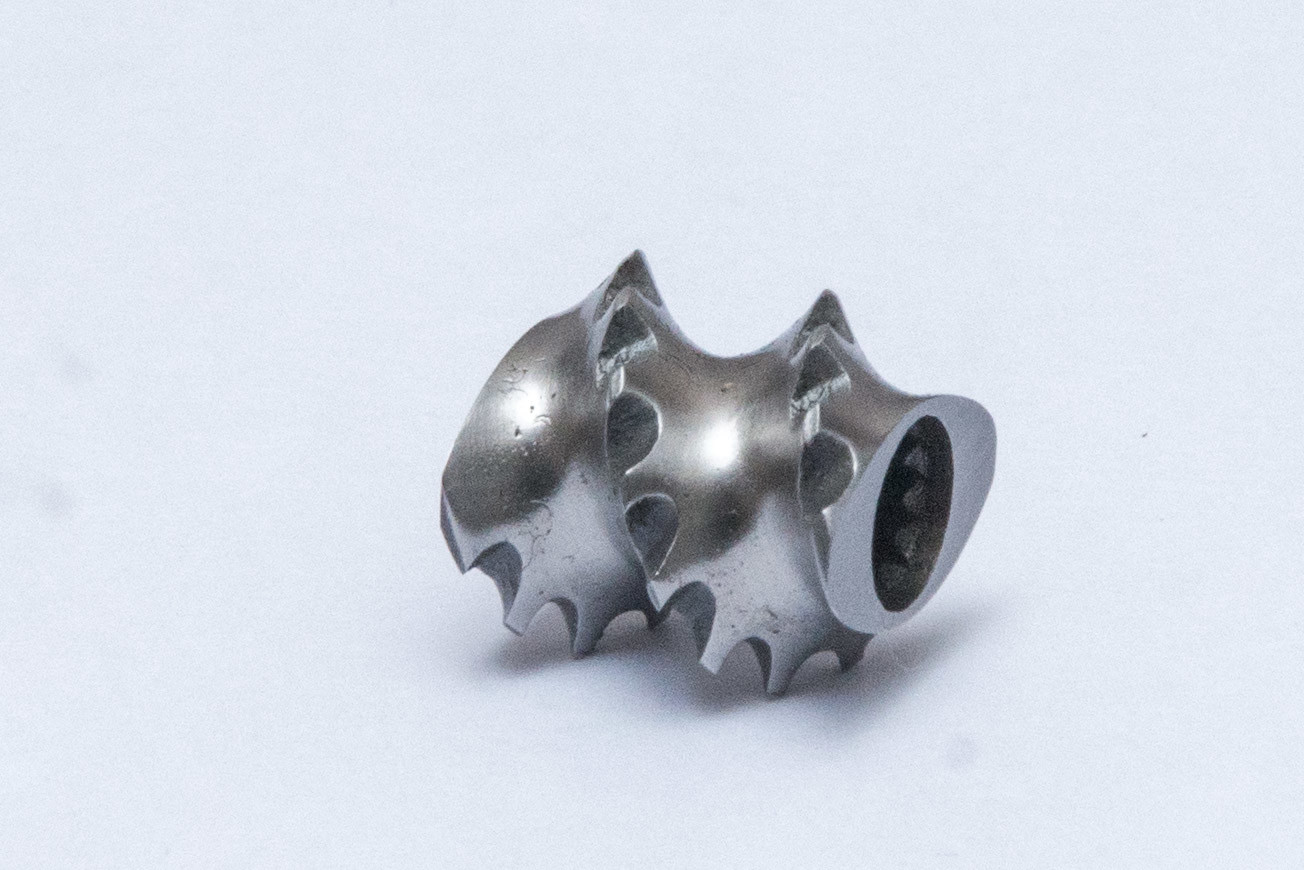

    The SME screw element is a hybrid element with several reverse shallow return grooves on a conventional forward conveying element. When the material is transported, multiple strands of backflow are formed through the many shallow grooves on the spiral edge, and the ability to disperse and distribute is added. This element generates low shear heat, and the SME screw element has the lowest energy consumption of several screw mixing elements. Selection principle: It is usually placed in the melting section and the extrusion section of the twin-screw, and it is arranged between the 45 ° or 60 ° kneading blocks in the overall low-shear overall pattern of the full-screw to appropriately increase the distribution and dispersion of the melt.

    Extruder Machine SME Screw Element And Barrel Twin Screw Extruder Parts 350mm Mixing Zone

    Specification

    Screw Diameter68.25 mmExtruder Machine SME Screw Element And Barrel Twin Screw Extruder Parts 350mm Mixing Zone
    Screw DesignDouble-Screw
    Hardness58-60HRC
    Brand NameJioner
    Surface TreatmentPolishing/Sand Blasting
    MaterialsSAM10/SAM39/WR5/WR14/W6Mo5Cr4V2
    Place of OriginSichuan, China
    Warranty1 Years
    Screw RangeΦ 15.6 - Φ 430mm


    Extruder Screw Materials

    1. For wear application:
    Tool Steel : W6Mo5Cr4V2;
    PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V
    2. For corrosion application:
    Nitrided Steel: 38CrMoAI;
    PM-HIP material : SAM26 SAM39 CPM10V CPM9V
    3. For wear and corrosion application:
    PM-HIP material:SAM26 SAM39 CPM10V CPM9V
    4. Other Materials:
    Stainless Steel: 316L, C276, SX737 etc.

    Extruder Machine SME Screw Element And Barrel Twin Screw Extruder Parts 350mm Mixing Zone

    Screw elements include

    Single flight, twin flight and tri-lobe elements
    Kneading blocks and single
    mixing paddles or discs
    High volume intake elements
    Conveying elements
    Compression elements

    Support twin-screw extruder brand

    Screw Diameter155mmExtruder Machine SME Screw Element And Barrel Twin Screw Extruder Parts 350mm Mixing Zone
    Screw DesignDouble-Screw
    Hardness58-60HRC
    Brand NameJioner
    Surface TreatmentPolishing/Sand Blasting
    MaterialsSAM10/SAM39/WR5/WR14/W6Mo5Cr4V2
    Place of OriginSichuan , China
    Warranty1 Years
    Screw RangeΦ 15.6 - Φ 430mm
    Suit ForPharmaceuticals Extrusion Chemical Extrusion Food Extrusion Powder Coating Extrusion


    Screw elements include

    Single flight, twin flight and tri-lobe elements
    Kneading blocks and single
    mixing paddles or discs
    High volume intake elements
    Conveying elements
    Compression elements

    Support twin-screw extruder brand

    W&P: ZSK-MCBerstorff: ZE
    Leistritz: ZSE-MICROTheysohn: TSK
    Maris:TM-WAPV: MP65
    JSW: TEXSM: TEK-HS
    Feddem: FED-MTSFessia Macross: NRII
    TOSHIBA: TEMUSEON: TDS
    Labtech: LTESHIZHOU: MTE


    Quality Control

    1). Materials control: All the materials are purchased from the domestic brands or European twin-screw specialty materials suppliers, which tested by elemental analysis and metallurgical inspections to ensure the quality.
    2). The internal splines is checked by the spline plug to ensure interchangeability of the elements
    3). All components are machined by CNC machines to ensure the shapes and tolerances of the elements
    4). Adopt the European high-speed steel powder processing technology, and do the treatment according to the strict heat treatment 4 process to ensure the wear and corrosion performance same as the foreign brands.
    5). Professional technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.
    6). There are various prepared technical information and the fixtures for the various brands extruders to ensure the timely lead time. The common components have a lot of stock, even the new one, it can be delivered within 45days.
    7). The modern management system can ensure the products 100% qualified and tracked.

    Production Process

    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 9

    NO.1

    Workblank


    Select high-quality raw materials

    NO.2

    Piecewise
    According to the drawing section length

    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 10
    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 11

    NO.3

    Hit bottom hole
    Rough machining the bottom hole,and then pull spline

    NO.4

    Machining thread
    Professional high-end processing equipment,rough machining threads

    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 12
    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 13

    NO.5

    Finish machining thread

    NO.6

    Threading grinding
    Further control of tolerance
    Length:-0.01mm-+0.01mm
    OD:-0.03mm-0mm
    Transition arc:-0.02mm-+0.02mm

    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 14


    Packing&Delivery

    Packing Details: According to your order quantity packaging, shipping wooden boxes, air carton.
    Delivery Details: 20-60days after order.

    Extruder Machine SME Screw Element And Barrel Twin Screw Extruder Parts 350mm Mixing Zone

    Production and Inspection of Equipment

    We also have advantages in production equipment and inspection equipment.
    Nanxiang has 70 advanced equipments such as CNC thread grinder, CNC thread milling, CNC kneading block grinder, CNC forming milling, 4-axis machining center, automatic deep hole grinder, CNC lathe, CNC surface grinder, CNC external grinding, CNC band saw, laser marking machine, vacuum quenching furnace and vacuum tempering furnace. After the raw materials enter the market, all the processing procedures are in-house.

    About Us

    Nanxiang Machinery is a specialized manufacturer of precision-machined components for twin-screw extruders, including threaded elements, kneading blocks, mandrels, super-hard screw accessories, and wear-resistant alloy steel sleeves. Our products are widely applied in renowned international brands such as Coperion, Lerstritz, Berstorff, KOBE, and JSW, serving industries like plastics, food, feed, pellet manufacturing, pharmaceuticals, and new energy.
    Extruder Machine SME Screw Element And Barrel Twin Screw Extruder Parts 350mm Mixing Zone

    FAQ

    Q: Are your quotations all FOB?
    A: Yes, all our quotations are FOB (Free on Board).

    Q: Can I get a one-year warranty for free?
    A: Our standard warranty is not free, but we have confidence in the quality of our products. If you require a warranty, it will be available for an additional cost.

    Q: How is your after-sale service?
    A: We are committed to providing timely support. If you encounter any issues with our products, you will receive our assistance promptly. We strive to ensure you receive the best service possible.
