| Brand Name : | Nanxiang Machinery |
| Model Number : | As Requested |
| Certification : | ISO 9001 |
| Price : | Negotiable |
| Delivery Time : | 30~60 days |
| Payment Terms : | TT/LC |
| Supply Ability : | 300M/Month |
The Modified Material 90° Kneading Block is specially designed to meet the needs of modern-day extrusion processes. It is engineered to withstand high levels of shear stress, making it an ideal solution for high-intensity processing applications. The kneading block is expertly crafted to provide consistent and reliable performance, ensuring that your production process runs smoothly and efficiently.
The Shear Intense Kneading Block is a product that is built to last. It is designed to provide exceptional resistance to wear and tear, ensuring that it will continue to perform at a high level even after extended use. The polishing and sandblast treatment of the kneading block further enhances its durability, making it an ideal choice for demanding extrusion applications.
| Screw Diameter | Optional |  |
| Screw Design | 90° Kneading Block | |
| Hardness | 58-60HRC | |
| Brand Name | Nanxiang Machinery | |
| Surface Treatment | Polishing/Sand Blasting | |
| Materials | SAM10/SAM39/WR5/WR14/W6Mo5Cr4V2 | |
| Place of Origin | Sichuan , China | |
| Warranty | 6 months | |
| Screw Range | Φ 15.6 - Φ 430mm | |
| Suit For | Pharmaceuticals Extrusion Chemical Extrusion Food Extrusion Powder Coating Extrusion | |
1. For wear application:
Tool Steel : W6Mo5Cr4V2;
PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V
2. For corrosion application:
Nitrided Steel: 38CrMoAI;
PM-HIP material : SAM26 SAM39 CPM10V CPM9V
3. For wear and corrosion application:
PM-HIP material:SAM26 SAM39 CPM10V CPM9V
4. Other Materials:
Stainless Steel: 316L, C276, SX737 etc.
Single flight, twin flight and tri-lobe elements
Kneading blocks and single
mixing paddles or discs
High volume intake elements
Conveying elements
Compression elements
Reverse elements
Flow splitting elements to mix different viscosities
Transition elements from single flight to twin flight
| W&P: ZSK-MC | Berstorff: ZE |
| Leistritz: ZSE-MICRO | Theysohn: TSK |
| Maris:TM-W | APV: MP65 |
| JSW: TEX | SM: TEK-HS |
| Feddem: FED-MTS | Fessia Macross: NRII |
| TOSHIBA: TEM | USEON: TDS |
| Labtech: LTE | SHIZHOU: MTE |
30° kneading block
45° kneading block
60° kneading block
90° kneading block
3KB kneading block
Reverse 45° kneading block
1). Materials control: All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.
2). The internal splines is checked by the spline plug to ensure interchangeability of the elements
3). All components are machined by CNC machines to ensure the shapes and tolerances of the elements
4). Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.
5). Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.
6). There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.
7). The modern management system can ensure the products 100% qualified and tracked.
| W6Mo5Cr4V2 Chemical Composition | |||||||||||
| C | SI | Mn | P | S | Cr | Mo | V | W | Cu | Ni | |
| W-% | 0.88 | 0.35 | 0.3 | 0.023 | 0.003 | 4.03 | 4.81 | 1.86 | 5.95 | 0.12 | 0.24 |

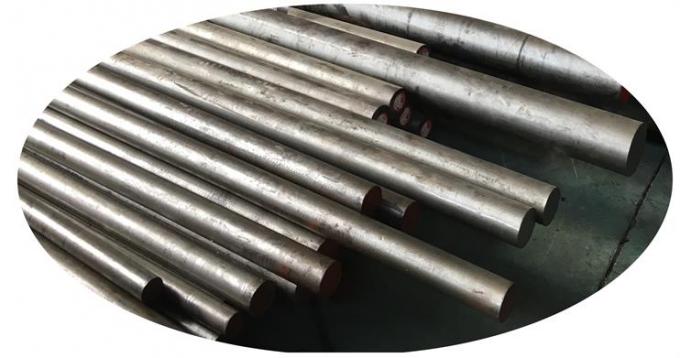

 | NO.1 Workblank Select high-quality raw materials |

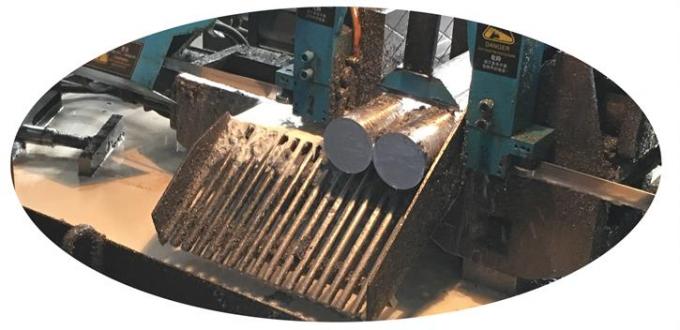

NO.2 Piecewise
|  |
 | NO.3 Hit bottom hole
|

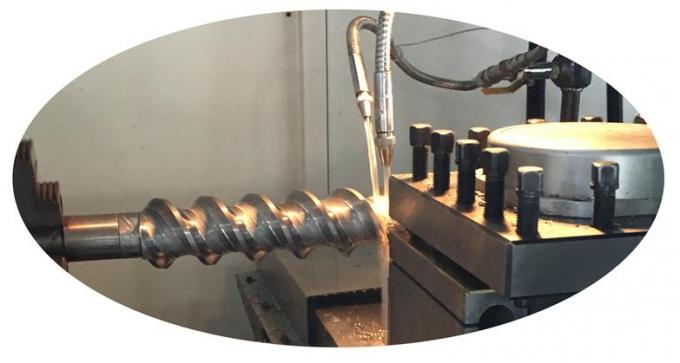

NO.4 Machining thread
|  |
 | NO.5 Finish machining thread |
NO.6 Threading grinding
|  |
24-hour Hotline No matter when and where to call we can find our service to you. | Pre-sales Consultation We have five sales people online, and whether you have any question can be solved through online communication,welcome your consultation. | After-sales Services Receive products have any questions about the product, can look for us,we will help you deal with the the first time,to your satisfaction. |
All Nanxiang keep pay attention to every step of the details,We are looking forward to the forge ahead together with you! | ||
There are some differences between Nanxiang Machinery and Nanjing's production technology. Their finishing process is carried out before heat treatment, and the deformation after heat treatment is not controlled, so their accuracy is not easy to control. But our finishing process is carried out after heat treatment, which can eliminate the deformation of parts in heat treatment, so the precision is higher, and thus can achieve zero seam connection.
Packing Details: According to your order quantity packaging, shipping wooden boxes, air carton.
Delivery Details: 20-60days after order.
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Chengdu, Sichuan Province, China. You can fly directly to Chengdu Airport, and we will pick you up upon arrival. We warmly welcome all our clients, both domestic and international, to visit us.
Q: How long will your product last?
A: The lifespan of our products can vary greatly depending on the operation time, materials used, and working conditions. Therefore, it is difficult to provide an exact duration.
Q: Are your quotations all FOB?
A: Yes, all our quotations are FOB (Free on Board).
|
|
