    HRC 58 Industrial Mixing Screw Rotor Extruder Screw Parts For Blending

    Ask Lasest Price
    Brand Name : Nanxiang Machinery
    Model Number : As Requested
    Certification : ISO 9001
    Price : Negotiable
    Delivery Time : 30~60 days
    Payment Terms : TT/LC
    Supply Ability : 300M/Month
    • Product Details
    • Company Profile

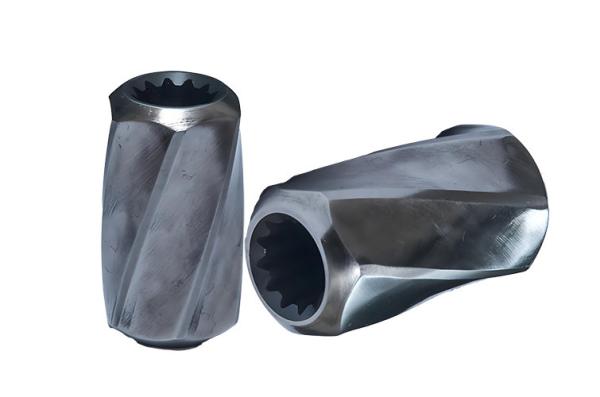

    HRC 58 Industrial Mixing Screw Rotor Extruder Screw Parts For Blending


    Twin Screw Extruder Industrial Mixing Rotor for Smooth and Effective Blending Performance

    Product Description:


    The mixing rotor is made of premium quality materials and undergoes a rigorous polishing/sand blast treatment process to ensure excellent performance and durability. The connection method used for this mixing rotor is spline, which is a highly reliable and secure method.

    The Polymer Mixing Rotor is designed to provide high-efficiency mixing of polymers in extrusion machines. The mixing rotor is carefully engineered to ensure that it delivers a consistent mixing performance, which is essential for producing high-quality products. The high-efficiency mixing rotor is suitable for use in a wide range of applications, including the production of plastic films, sheets, and pipes.

    The mixing rotor has been designed with precision to ensure that it operates smoothly and quietly. The rotor's design ensures that there is minimal wear and tear, which helps to extend its lifespan. The mixing rotor is easy to install and maintain, which means that it can be used by a wide range of operators, including those with limited experience.


    HRC 58 Industrial Mixing Screw Rotor Extruder Screw Parts For Blending

    Features:


    Product Name: Mixing Rotor

    Heat treatment: Vacuum Hardening

    Technics: Machining

    Treatment: Polishing/Sand Blast

    Service Provided: Video Technical Support

    Standard: DIN, GB, Etc.

    Polymer Mixing Rotor

    Low-Shear Mixing Rotor

    Polymer Mixing Rotor


    Specification


    Screw DiameterOptionalHRC 58 Industrial Mixing Screw Rotor Extruder Screw Parts For Blending
    Screw DesignMixing Rotor
    Hardness58-60HRC
    Brand NameNanxiang Machinery
    Surface TreatmentPolishing/Sand Blasting
    MaterialsSAM10/SAM39/WR5/WR14/W6Mo5Cr4V2
    Place of OriginSichuan , China
    Warranty6 months
    Screw RangeΦ 15.6 - Φ 430mm
    Suit ForPharmaceuticals Extrusion Chemical Extrusion Food Extrusion Powder Coating Extrusion

    Extruder Screw Materials


    1. For wear application:

    Tool Steel : W6Mo5Cr4V2;

    PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V

    2. For corrosion application:

    Nitrided Steel: 38CrMoAI;

    PM-HIP material : SAM26 SAM39 CPM10V CPM9V

    3. For wear and corrosion application:

    PM-HIP material:SAM26 SAM39 CPM10V CPM9V

    4. Other Materials:

    Stainless Steel: 316L, C276, SX737 etc.


    HRC 58 Industrial Mixing Screw Rotor Extruder Screw Parts For Blending


    Screw element include


    Single flight, twin flight and tri-lobe elements

    Kneading blocks and single

    mixing paddles or discs

    High volume intake elements

    Conveying elements

    Compression elements

    Reverse elements

    Flow splitting elements to mix different viscosities

    Transition elements from single flight to twin flight


    Support twin-screw extruder brand


    W&P: ZSK-MCBerstorff: ZE
    Leistritz: ZSE-MICROTheysohn: TSK
    Maris:TM-WAPV: MP65
    JSW: TEXSM: TEK-HS
    Feddem: FED-MTSFessia Macross: NRII
    TOSHIBA: TEMUSEON: TDS
    Labtech: LTESHIZHOU: MTE

    Quality Control


    1). Materials control: All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.

    2). The internal splines is checked by the spline plug to ensure interchangeability of the elements

    3). All components are machined by CNC machines to ensure the shapes and tolerances of the elements

    4). Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.

    5). Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.

    6). There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.

    7). The modern management system can ensure the products 100% qualified and tracked.


    Tool Steel


    W6Mo5Cr4V2 Chemical Composition
    CSIMnPSCrMoVWCuNi
    W-%0.880.350.30.0230.0034.034.811.865.950.120.24

    Production Process


    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 9

    NO.1


    Workblank


    Select high-quality raw materials


    NO.2


    Piecewise


    According to the drawing section length


    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 10
    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 11

    NO.3


    Hit bottom hole


    Rough machining the bottom hole,and then pull spline


    NO.4


    Machining thread


    Professional high-end processing equipment,rough machining threads


    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 12
    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 13

    NO.5


    Finish machining thread


    NO.6


    Threading grinding


    Further control of tolerance
    Length:-0.01mm-+0.01mm
    OD:-0.03mm-0mm
    Transition arc:-0.02mm-+0.02mm


    Melting Zone Extruder Screw Elements 30° - 90° Angle Design Stable Performance 14

    Our Service


    24-hour Hotline


    No matter when and where

    to call we can find our service to you.


    Pre-sales Consultation


    We have five sales people online,

    and whether you have any question

    can be solved through online

    communication,welcome your consultation.

    After-sales Services


    Receive products have any

    questions about the product,

    can look for us,we will help

    you deal with the the first time,to your satisfaction.


    All Nanxiang keep pay attention to every step of the details,We are looking forward to the forge ahead together with you!


    Product accuracy


    There are some differences between Nanxiang Machinery and Nanjing's production technology. Their finishing process is carried out before heat treatment, and the deformation after heat treatment is not controlled, so their accuracy is not easy to control. But our finishing process is carried out after heat treatment, which can eliminate the deformation of parts in heat treatment, so the precision is higher, and thus can achieve zero seam connection.


    Packing&Delivery


    Packing Details: According to your order quantity packaging, shipping wooden boxes, air carton.

    Delivery Details: 20-60days after order.


    HRC 58 Industrial Mixing Screw Rotor Extruder Screw Parts For Blending


    Customer Trust


    HRC 58 Industrial Mixing Screw Rotor Extruder Screw Parts For BlendingHRC 58 Industrial Mixing Screw Rotor Extruder Screw Parts For Blending


    Why choose us?


    Nanxiang Machinery is a specialized manufacturer of precision-machined components for twin-screw extruders, including threaded elements, kneading blocks, mandrels, super-hard screw accessories, and wear-resistant alloy steel sleeves. Our products are widely applied in renowned international brands such as Coperion, Lerstritz, Berstorff, KOBE, and JSW, serving industries like plastics, food, feed, pellet manufacturing, pharmaceuticals, and new energy.


    HRC 58 Industrial Mixing Screw Rotor Extruder Screw Parts For BlendingHRC 58 Industrial Mixing Screw Rotor Extruder Screw Parts For Blending


    FAQ


    Q: Are you a trading company or a manufacturer?

    A: We are a manufacturer.


    Q: Where is your factory located? How can I visit there?

    A: Our factory is located in Chengdu, Sichuan Province, China. You can fly directly to Chengdu Airport, and we will pick you up upon arrival. We warmly welcome all our clients, both domestic and international, to visit us.


    Q: How long will your product last?

    A: The lifespan of our products can vary greatly depending on the operation time, materials used, and working conditions. Therefore, it is difficult to provide an exact duration.


    Q: Are your quotations all FOB?

    A: Yes, all our quotations are FOB (Free on Board).


    Q: Can I get a one-year warranty for free?

    A: Our standard warranty is not free, but we have confidence in the quality of our products. If you require a warranty, it will be available for an additional cost.


    Q: How is your after-sale service?

    A: We are committed to providing timely support. If you encounter any issues with our products, you will receive our assistance promptly. We strive to ensure you receive the best service possible.
