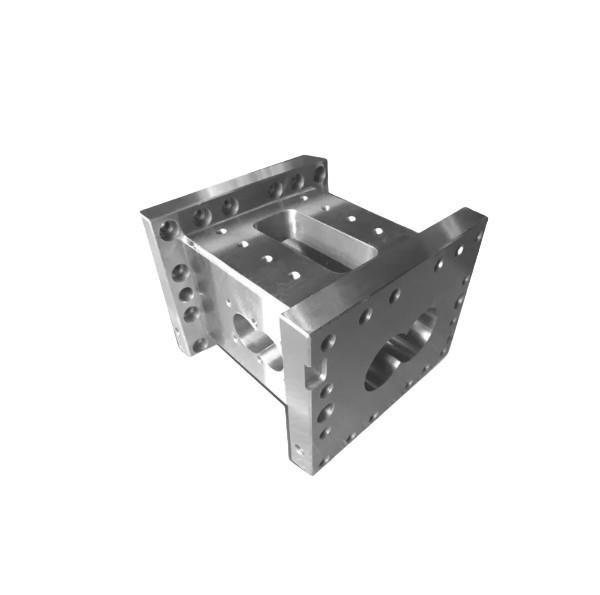

High Temperature Resistant Extruder Side Feed Barrel for Plastic Industry
Our Extruder Barrel with Side Feed is made using a combination of forging and CNC techniques, ensuring maximum precision and quality. This process allows us to create a product that is not only highly durable but also incredibly precise, ensuring that your production process is as efficient as possible.
| Product Name | Side-Feed Extruder Barrel |  |
| Production | Forging + CNC | |
| Technics | Machining | |
| Barrel Hardness | HRC 58-62 | |
| Barrel Type | Side Feed | |
| Treatment | Polishing/Sand Blast | |
| Screw type | Double Screw | |
| Standard | DIN, GB, Etc. | |
| Materials | Nitrided steel barrels/ Tooling steel barrels/ Bimetallic | |
| Application | Plastic industry/ Wood plastic inflated/ Food powder coating | |
The Top Vent Side Feed Barrel is an ideal product for those looking for a reliable and durable barrel for their plastic extrusion needs. This barrel features a top vent design which allows for excellent ventilation and ensures an even flow of material. It is also ideal for processing materials with high moisture content.
Standard for classification:
1. Feeding barrel
2. Solid barrel
3. Closed barrel
4. Barrels with inners
| Standard Barrel Parameter Table (selection table) | |||
| Model | Size(mm) W.H.L | Hole Diameter (mm) | Center Distance (mm) |
| JN-20 | 115.105.132 | Φ23 | 18.4 |
| JN-30 | 135.115.120 | Φ30.6 | 26 |
| JN-35 | 140.120.140 | Φ36 | 30 |
| JN-36 | 160.140.150 | Φ36 | 30 |
| JN-40 | 175.145.160 | Φ41.6 | 34.5 |
| JN-50 | 190.150.190 | Φ51 | 42 |
| JN-52 | 200.155.210 | Φ52 | 43 |
| JN-53 | 210.160.220 | Φ53.3 | 48 |
| JN-58 | 220.175.240 | Φ58 | 48 |
| JN-60 | 210.170.240 | Φ60 | 52 |
| JN-65 | 210.170.240 | Φ63 | 52 |
| JN-75 | 260.200.290 | Φ71.8 | 60 |
| JN-85 | 280.215.320 | Φ81.9 | 67.8 |
| JN-92 | 310.240.360 | Φ92 | 78 |
| JN-95 | 310.240.360 | Φ94 | 78 |
| JN-110 | 330.240.420 | Φ109 | 91.5 |
| JN-125 | 390.290.500 | Φ125 | 98 |
| JN-135 | 370.300.410 | Φ134 | 110 |
 | NO.1 Workblank Select high-quality raw materials |
NO.2 Piecewise
|  |
 | NO.3 Hit bottom hole
|
NO.4 Machining thread
|  |
 | NO.5 Finish machining thread |
NO.6 Threading grinding
|  |
| 24-hour Hotline | Pre-sales Consultation | After-sales Services |
| No matter when and where to call we can find our service to you. | Whether you have any question can be solved through online communication. Welcome your consultation. | Having any questions about the products, please contact with us and we will help you deal with them the first time to your satisfaction. |
There are some differences between Nanxiang Machinery and Nanjing's production technology. Their finishing process is carried out before heat treatment, and the deformation after heat treatment is not controlled, so their accuracy is not easy to control. But our finishing process is carried out after heat treatment, which can eliminate the deformation of parts in heat treatment, so the precision is higher, and thus can achieve zero seam connection.
Packing Details: According to your order quantity packaging, shipping wooden boxes, air carton.
Delivery Details: 20-60days after order.
According to your order quantities and products sizes to choose wooden boxes or cartons to pack:
a. Rust-proof oil processing,
b. Oiled paper packages,
c. Bubble wrap package,
d. Special foam packaging,
e. Packing,
f. Sealing.
Nanxiang Machinery is a specialized manufacturer of precision-machined components for twin-screw extruders, including threaded elements, kneading blocks, mandrels, super-hard screw accessories, and wear-resistant alloy steel sleeves. Our products are widely applied in renowned international brands such as Coperion, Lerstritz, Berstorff, KOBE, and JSW, serving industries like plastics, food, feed, pellet manufacturing, pharmaceuticals, and new energy.
